Demand more from your corrugated production with the UniPack Pro Line 180. Designed for established manufacturers with high-volume requirements, this line operates at a formidable 180 m/min (working speed 150 m/min), delivering exceptional throughput without compromising on quality or precision. The Pro Line 180 embodies UniPack's most advanced engineering, integrating sophisticated automation and "Intelligent Edge" features for superior control, efficiency, and data-driven insights, empowering you to meet the most challenging production schedules and quality standards.
Demand more from your corrugated production with the UniPack Pro Line 180. Designed for established manufacturers with high-volume requirements, this line operates at a formidable 180 m/min (working speed 150 m/min), delivering exceptional throughput without compromising on quality or precision. The Pro Line 180 embodies UniPack's most advanced engineering, integrating sophisticated automation and "Intelligent Edge" features for superior control, efficiency, and data-driven insights, empowering you to meet the most challenging production schedules and quality standards.
Demand more from your corrugated production with the UniPack Pro Line 180. Designed for established manufacturers with high-volume requirements, this line operates at a formidable 180 m/min (working speed 150 m/min), delivering exceptional throughput without compromising on quality or precision. The Pro Line 180 embodies UniPack's most advanced engineering, integrating sophisticated automation and "Intelligent Edge" features for superior control, efficiency, and data-driven insights, empowering you to meet the most challenging production schedules and quality standards.
KEY HIGHLIGHTS
m/min
Design Speed
m/min
Working Speed
tpd
Daily Production
tpm
Monthly Production
KEY HIGHLIGHTS
m/min
Design Speed
m/min
Working Speed
tpd
Daily Production
tpm
Monthly Production
KEY HIGHLIGHTS
m/min
Design Speed
m/min
Working Speed
tpd
Daily Production
tpm
Monthly Production
KEY HIGHLIGHTS
m/min
Design Speed
m/min
Working Speed
tpd
Daily Production
tpm
Monthly Production
plant variant

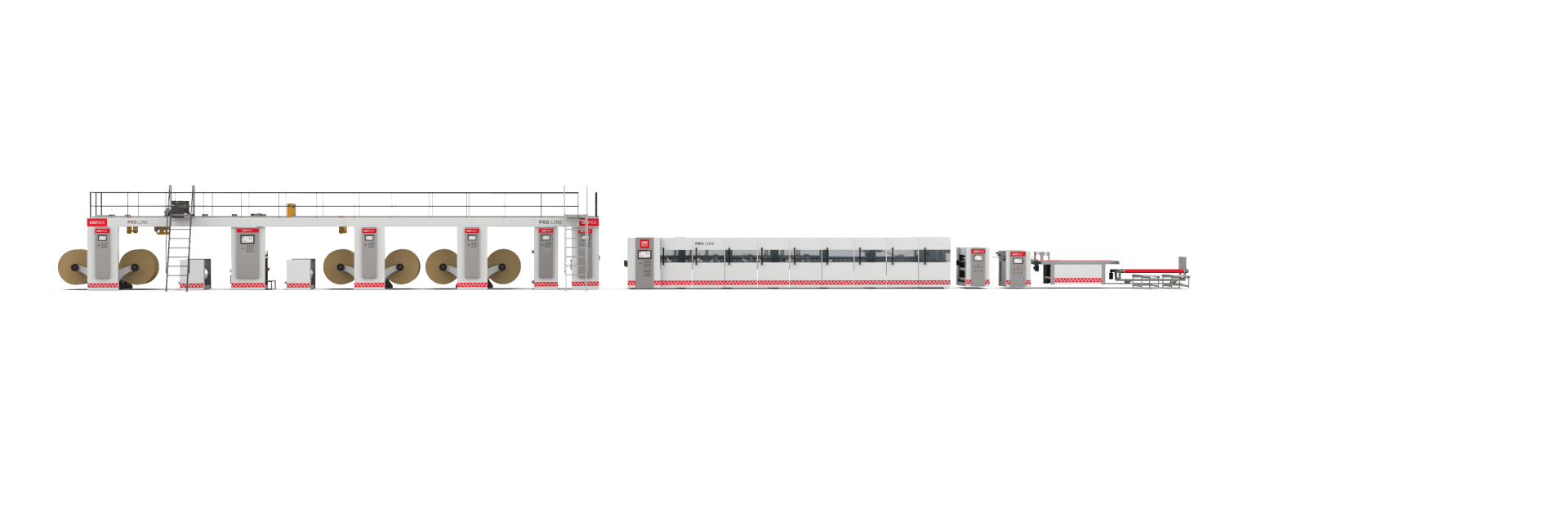

Pro Line - 180 Series - 03 Ply
mm
Max Working Width
Flute Profiles Available
ops
Operators
Smart Control System
specifications
Technical Specifications
LIST OF MACHINES
Mill Roll Stand
03 Hydraulic
Single Facer
01 Square Model - Ø400mm
Pre-Heater
Ø800mm Duplex
Gluing Machine
03 Ply Anilox Gluing Machine
Bridge Guide System
Dancing Roller - Web Control
Double Facer
15 Hot Plates
NC Cut Off
Helical Blade
Thin Blade
NC Thin Blade Slitter Scorer
Stacker
Gantry Stacker
Control Panel
Standard Touch Screen
technical parameters
Plant Series
UNI-PRO-180-03
Product Code
1510-1800-1000-0000
Working GSM
90 - 250GSM
Flute Profile
A, B, C, E, F (Customer Choice)
Monthly Production
2000 tonnes
Heating Types
Steam / Thermic Fluid
Hot Plates
15 Hot Plates
Sizes Available
1600 / 1800 / 2000 / 2200 / 2500mm
For complete Technical Specifications, Download Catalog
plant variant
Pro Line - 180 Series - 03 Ply
mm
Max Working Width
Flute Profiles Available
ops
Operators
Smart Control System
specifications
Technical Specifications
LIST OF MACHINES
Mill Roll Stand
03 Hydraulic
Single Facer
01 Square Model - Ø400mm
Pre-Heater
Ø800mm Duplex
Gluing Machine
03 Ply Anilox Gluing Machine
Bridge Guide System
Dancing Roller - Web Control
Double Facer
15 Hot Plates
NC Cut Off
Helical Blade
Thin Blade
NC Thin Blade Slitter Scorer
Stacker
Gantry Stacker
Control Panel
Standard Touch Screen
technical parameters
Plant Series
UNI-PRO-180-03
Product Code
1510-1800-1000-0000
Working GSM
90 - 250GSM
Flute Profile
A, B, C, E, F (Customer Choice)
Monthly Production
2000 tonnes
Heating Types
Steam / Thermic Fluid
Hot Plates
15 Hot Plates
Sizes Available
1600 / 1800 / 2000 / 2200 / 2500mm
For complete Technical Specifications, Download Catalog
plant variant
Pro Line - 180 Series - 03 Ply
mm
Max Working Width
Flute Profiles Available
ops
Operators
Smart Control System
specifications
Technical Specifications
LIST OF MACHINES
Mill Roll Stand
03 Hydraulic
Single Facer
01 Square Model - Ø400mm
Pre-Heater
Ø800mm Duplex
Gluing Machine
03 Ply Anilox Gluing Machine
Bridge Guide System
Dancing Roller - Web Control
Double Facer
15 Hot Plates
NC Cut Off
Helical Blade
Thin Blade
NC Thin Blade Slitter Scorer
Stacker
Gantry Stacker
Control Panel
Standard Touch Screen
technical parameters
Plant Series
UNI-PRO-180-03
Product Code
1510-1800-1000-0000
Working GSM
90 - 250GSM
Flute Profile
A, B, C, E, F (Customer Choice)
Monthly Production
2000 tonnes
Heating Types
Steam / Thermic Fluid
Hot Plates
15 Hot Plates
Sizes Available
1600 / 1800 / 2000 / 2200 / 2500mm
For complete Technical Specifications, Download Catalog
plant variant
Pro Line - 180 Series - 03 Ply
mm
Max Working Width
Flute Profiles Available
ops
Operators
Smart Control System
specifications
Technical Specifications
LIST OF MACHINES
Mill Roll Stand
03 Hydraulic
Single Facer
01 Square Model - Ø400mm
Pre-Heater
Ø800mm Duplex
Gluing Machine
03 Ply Anilox Gluing Machine
Bridge Guide System
Dancing Roller - Web Control
Double Facer
15 Hot Plates
NC Cut Off
Helical Blade
Thin Blade
NC Thin Blade Slitter Scorer
Stacker
Gantry Stacker
Control Panel
Standard Touch Screen
technical parameters
Plant Series
UNI-PRO-180-03
Product Code
1510-1800-1000-0000
Working GSM
90 - 250GSM
Flute Profile
A, B, C, E, F (Customer Choice)
Monthly Production
2000 tonnes
Heating Types
Steam / Thermic Fluid
Hot Plates
15 Hot Plates
Sizes Available
1600 / 1800 / 2000 / 2200 / 2500mm
For complete Technical Specifications, Download Catalog
plant variant

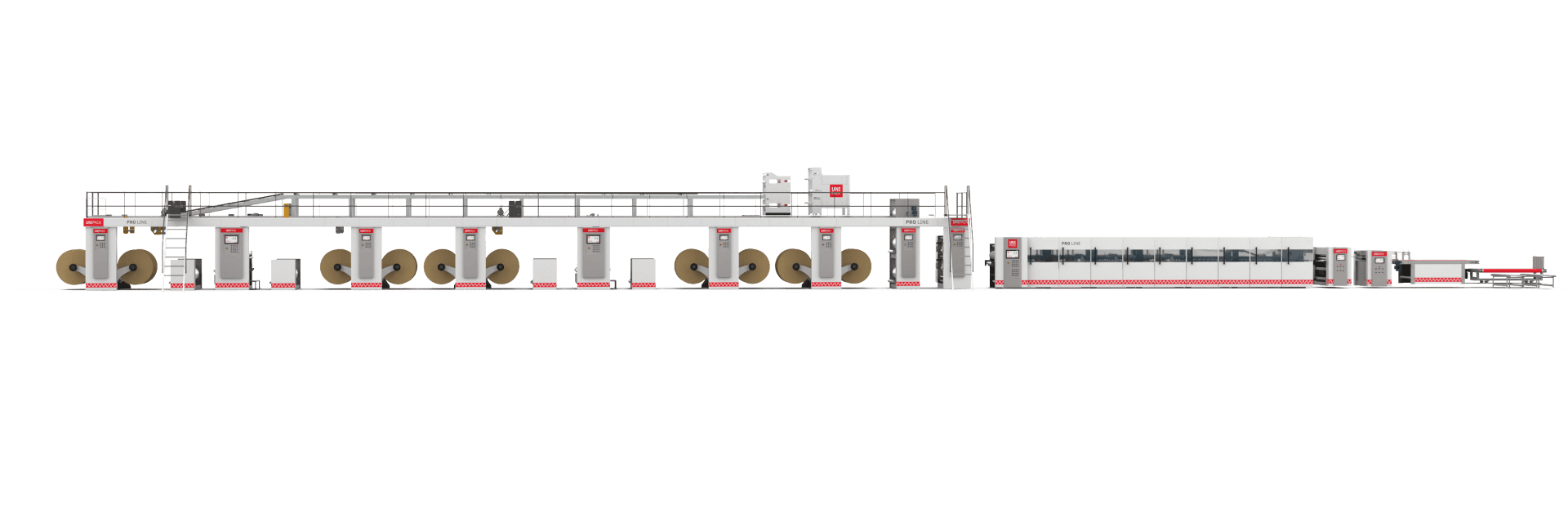

Pro Line - 180 Series - 03 Ply
mm
Max Working Width
Flute Profiles Available
ops
Operators
Smart Control System
specifications
Technical Specifications
LIST OF MACHINES
Mill Roll Stand
05 Hydraulic
Single Facer
02 Square Model - Ø400mm
Pre-Heater
Ø800mm Triplex
Gluing Machine
05 Ply Anilox Gluing Machine
Bridge Guide System
Dancing Roller - Web Control
Double Facer
18 Hot Plates
NC Cut Off
Helical Blade
Thin Blade
NC Thin Blade Slitter Scorer
Stacker
Gantry Stacker
Control Panel
Standard Touch Screen
technical parameters
Plant Series
UNI-PRO-180-05
Product Code
1510-1800-1000-0000
Working GSM
90 - 250GSM
Flute Profile
A, B, C, E, F (Customer Choice)
Monthly Production
2000 tonnes
Heating Types
Steam / Thermic Fluid
Hot Plates
18 Hot Plates
Sizes Available
1600 / 1800 / 2000 / 2200 / 2500mm
For complete Technical Specifications, Download Catalog
plant variant
Pro Line - 180 Series - 03 Ply
mm
Max Working Width
Flute Profiles Available
ops
Operators
Smart Control System
specifications
Technical Specifications
LIST OF MACHINES
Mill Roll Stand
05 Hydraulic
Single Facer
02 Square Model - Ø400mm
Pre-Heater
Ø800mm Triplex
Gluing Machine
05 Ply Anilox Gluing Machine
Bridge Guide System
Dancing Roller - Web Control
Double Facer
18 Hot Plates
NC Cut Off
Helical Blade
Thin Blade
NC Thin Blade Slitter Scorer
Stacker
Gantry Stacker
Control Panel
Standard Touch Screen
technical parameters
Plant Series
UNI-PRO-180-05
Product Code
1510-1800-1000-0000
Working GSM
90 - 250GSM
Flute Profile
A, B, C, E, F (Customer Choice)
Monthly Production
2000 tonnes
Heating Types
Steam / Thermic Fluid
Hot Plates
18 Hot Plates
Sizes Available
1600 / 1800 / 2000 / 2200 / 2500mm
For complete Technical Specifications, Download Catalog
plant variant
Pro Line - 180 Series - 03 Ply
mm
Max Working Width
Flute Profiles Available
ops
Operators
Smart Control System
specifications
Technical Specifications
LIST OF MACHINES
Mill Roll Stand
05 Hydraulic
Single Facer
02 Square Model - Ø400mm
Pre-Heater
Ø800mm Triplex
Gluing Machine
05 Ply Anilox Gluing Machine
Bridge Guide System
Dancing Roller - Web Control
Double Facer
18 Hot Plates
NC Cut Off
Helical Blade
Thin Blade
NC Thin Blade Slitter Scorer
Stacker
Gantry Stacker
Control Panel
Standard Touch Screen
technical parameters
Plant Series
UNI-PRO-180-05
Product Code
1510-1800-1000-0000
Working GSM
90 - 250GSM
Flute Profile
A, B, C, E, F (Customer Choice)
Monthly Production
2000 tonnes
Heating Types
Steam / Thermic Fluid
Hot Plates
18 Hot Plates
Sizes Available
1600 / 1800 / 2000 / 2200 / 2500mm
For complete Technical Specifications, Download Catalog
plant variant
Pro Line - 180 Series - 03 Ply
mm
Max Working Width
Flute Profiles Available
ops
Operators
Smart Control System
specifications
Technical Specifications
LIST OF MACHINES
Mill Roll Stand
05 Hydraulic
Single Facer
02 Square Model - Ø400mm
Pre-Heater
Ø800mm Triplex
Gluing Machine
05 Ply Anilox Gluing Machine
Bridge Guide System
Dancing Roller - Web Control
Double Facer
18 Hot Plates
NC Cut Off
Helical Blade
Thin Blade
NC Thin Blade Slitter Scorer
Stacker
Gantry Stacker
Control Panel
Standard Touch Screen
technical parameters
Plant Series
UNI-PRO-180-05
Product Code
1510-1800-1000-0000
Working GSM
90 - 250GSM
Flute Profile
A, B, C, E, F (Customer Choice)
Monthly Production
2000 tonnes
Heating Types
Steam / Thermic Fluid
Hot Plates
18 Hot Plates
Sizes Available
1600 / 1800 / 2000 / 2200 / 2500mm
For complete Technical Specifications, Download Catalog
FEATURE
Heavy Duty Shaftless Mill Roll Stands with Splicer Integration readiness
The Pro Line 180 features ultra-robust Shaftless Mill Roll Stands, engineered for flawless paper feed at high speeds and prepared for seamless auto-splicer integration. This minimises roll change downtime and ensures maximum operational continuity critical for high-volume, 24/7 production environments.
HIGHLIGHTS
03+
tonnes
Max Capacity
Splicer
Ready Design
FEATURE
Heavy Duty Shaftless Mill Roll Stands with Splicer Integration readiness
The Pro Line 180 features ultra-robust Shaftless Mill Roll Stands, engineered for flawless paper feed at high speeds and prepared for seamless auto-splicer integration. This minimises roll change downtime and ensures maximum operational continuity critical for high-volume, 24/7 production environments.
HIGHLIGHTS
03+
tonnes
Max Capacity
Splicer
Ready Design
FEATURE
Heavy Duty Shaftless Mill Roll Stands with Splicer Integration readiness
The Pro Line 180 features ultra-robust Shaftless Mill Roll Stands, engineered for flawless paper feed at high speeds and prepared for seamless auto-splicer integration. This minimises roll change downtime and ensures maximum operational continuity critical for high-volume, 24/7 production environments.
HIGHLIGHTS
03+
tonnes
Max Capacity
Splicer
Ready Design
FEATURE
Heavy Duty Shaftless Mill Roll Stands with Splicer Integration readiness
The Pro Line 180 features ultra-robust Shaftless Mill Roll Stands, engineered for flawless paper feed at high speeds and prepared for seamless auto-splicer integration. This minimises roll change downtime and ensures maximum operational continuity critical for high-volume, 24/7 production environments.
HIGHLIGHTS
03+
tonnes
Max Capacity
Splicer
Ready Design
FEATURE
High-Performance Single Facers with Advanced Controls
Achieve impeccable flute integrity and bond strength at 150 m/min with the Pro Line 180's dual high-performance Single Facers (for 5-ply). Featuring precision-engineered flute rolls (up to Ø420mm or larger), advanced thermal controls, and rapid Cassette/Dual Profile changeovers, they are built for sustained quality at demanding speeds.
HIGHLIGHTS
~420
mm
Flute Roller Diameter
Pro-Grade
Precision & Speed
FEATURE
High-Performance Single Facers with Advanced Controls
Achieve impeccable flute integrity and bond strength at 150 m/min with the Pro Line 180's dual high-performance Single Facers (for 5-ply). Featuring precision-engineered flute rolls (up to Ø420mm or larger), advanced thermal controls, and rapid Cassette/Dual Profile changeovers, they are built for sustained quality at demanding speeds.
HIGHLIGHTS
~420
mm
Flute Roller Diameter
Pro-Grade
Precision & Speed
FEATURE
High-Performance Single Facers with Advanced Controls
Achieve impeccable flute integrity and bond strength at 150 m/min with the Pro Line 180's dual high-performance Single Facers (for 5-ply). Featuring precision-engineered flute rolls (up to Ø420mm or larger), advanced thermal controls, and rapid Cassette/Dual Profile changeovers, they are built for sustained quality at demanding speeds.
HIGHLIGHTS
~420
mm
Flute Roller Diameter
Pro-Grade
Precision & Speed
FEATURE
High-Performance Single Facers with Advanced Controls
Achieve impeccable flute integrity and bond strength at 150 m/min with the Pro Line 180's dual high-performance Single Facers (for 5-ply). Featuring precision-engineered flute rolls (up to Ø420mm or larger), advanced thermal controls, and rapid Cassette/Dual Profile changeovers, they are built for sustained quality at demanding speeds.
HIGHLIGHTS
~420
mm
Flute Roller Diameter
Pro-Grade
Precision & Speed
FEATURE
Automated Dual Profile, Quick Swap Configuration
Maximise production flexibility with the Pro Line 180's automated Quick Swap Cassette system for Dual Profile Single Facers. Minimise changeover times between flute types through intelligent controls, ensuring your plant can rapidly adapt to diverse job requirements while maintaining peak operational efficiency.
HIGHLIGHTS
Quick
Flute Change
High
Agility & Output
FEATURE
Automated Dual Profile, Quick Swap Configuration
Maximise production flexibility with the Pro Line 180's automated Quick Swap Cassette system for Dual Profile Single Facers. Minimise changeover times between flute types through intelligent controls, ensuring your plant can rapidly adapt to diverse job requirements while maintaining peak operational efficiency.
HIGHLIGHTS
Quick
Flute Change
High
Agility & Output
FEATURE
Automated Dual Profile, Quick Swap Configuration
Maximise production flexibility with the Pro Line 180's automated Quick Swap Cassette system for Dual Profile Single Facers. Minimise changeover times between flute types through intelligent controls, ensuring your plant can rapidly adapt to diverse job requirements while maintaining peak operational efficiency.
HIGHLIGHTS
Quick
Flute Change
High
Agility & Output
FEATURE
Automated Dual Profile, Quick Swap Configuration
Maximise production flexibility with the Pro Line 180's automated Quick Swap Cassette system for Dual Profile Single Facers. Minimise changeover times between flute types through intelligent controls, ensuring your plant can rapidly adapt to diverse job requirements while maintaining peak operational efficiency.
HIGHLIGHTS
Quick
Flute Change
High
Agility & Output
FEATURE
Consistent Quality Output: The UniPack Standard
The Smart Line 150 builds on UniPack's commitment to quality, delivering consistently superior board even at higher operational speeds. Precision engineering across all modules ensures minimal defects, reduced waste, and packaging that meets stringent customer requirements, supporting your growing reputation.
HIGHLIGHTS
Superior
Board Quality
Consistent
Quality even at High Speed
FEATURE
Consistent Quality Output: The UniPack Standard
The Smart Line 150 builds on UniPack's commitment to quality, delivering consistently superior board even at higher operational speeds. Precision engineering across all modules ensures minimal defects, reduced waste, and packaging that meets stringent customer requirements, supporting your growing reputation.
HIGHLIGHTS
Superior
Board Quality
Consistent
Quality even at High Speed
FEATURE
Consistent Quality Output: The UniPack Standard
The Smart Line 150 builds on UniPack's commitment to quality, delivering consistently superior board even at higher operational speeds. Precision engineering across all modules ensures minimal defects, reduced waste, and packaging that meets stringent customer requirements, supporting your growing reputation.
HIGHLIGHTS
Superior
Board Quality
Consistent
Quality even at High Speed
FEATURE
Consistent Quality Output: The UniPack Standard
The Smart Line 150 builds on UniPack's commitment to quality, delivering consistently superior board even at higher operational speeds. Precision engineering across all modules ensures minimal defects, reduced waste, and packaging that meets stringent customer requirements, supporting your growing reputation.
HIGHLIGHTS
Superior
Board Quality
Consistent
Quality even at High Speed
FEATURE
Intelligent Web Control & Tension Management System
The Pro Line 180 incorporates an advanced, closed-loop Web Control and Tension Management system. This "Intelligent Edge" feature ensures precise alignment and optimal tension for all paper grades across the full operational speed range, drastically reducing web breaks, minimising waste, and guaranteeing consistent board quality for demanding 5-ply applications.
HIGHLIGHTS
Vision
Assisted Alignment
Zero
Deviation
FEATURE
Intelligent Web Control & Tension Management System
The Pro Line 180 incorporates an advanced, closed-loop Web Control and Tension Management system. This "Intelligent Edge" feature ensures precise alignment and optimal tension for all paper grades across the full operational speed range, drastically reducing web breaks, minimising waste, and guaranteeing consistent board quality for demanding 5-ply applications.
HIGHLIGHTS
Vision
Assisted Alignment
Zero
Deviation
FEATURE
Intelligent Web Control & Tension Management System
The Pro Line 180 incorporates an advanced, closed-loop Web Control and Tension Management system. This "Intelligent Edge" feature ensures precise alignment and optimal tension for all paper grades across the full operational speed range, drastically reducing web breaks, minimising waste, and guaranteeing consistent board quality for demanding 5-ply applications.
HIGHLIGHTS
Vision
Assisted Alignment
Zero
Deviation
FEATURE
Intelligent Web Control & Tension Management System
The Pro Line 180 incorporates an advanced, closed-loop Web Control and Tension Management system. This "Intelligent Edge" feature ensures precise alignment and optimal tension for all paper grades across the full operational speed range, drastically reducing web breaks, minimising waste, and guaranteeing consistent board quality for demanding 5-ply applications.
HIGHLIGHTS
Vision
Assisted Alignment
Zero
Deviation
FEATURE
Dynamic Adaptive Pressure System in Double Facer
Experience superior board quality with the Pro Line 180's dynamic adaptive pressure system in the Double Facer. This "Intelligent Edge" system uses real-time feedback to optimise pressure and heat transfer, ensuring perfect bonding and exceptional flatness for all 5-ply board types, even during speed changes or varying ambient conditions.
HIGHLIGHTS
Dynamic
Real-Time Adjustment
Flawless
Board Quality
FEATURE
Dynamic Adaptive Pressure System in Double Facer
Experience superior board quality with the Pro Line 180's dynamic adaptive pressure system in the Double Facer. This "Intelligent Edge" system uses real-time feedback to optimise pressure and heat transfer, ensuring perfect bonding and exceptional flatness for all 5-ply board types, even during speed changes or varying ambient conditions.
HIGHLIGHTS
Dynamic
Real-Time Adjustment
Flawless
Board Quality
FEATURE
Dynamic Adaptive Pressure System in Double Facer
Experience superior board quality with the Pro Line 180's dynamic adaptive pressure system in the Double Facer. This "Intelligent Edge" system uses real-time feedback to optimise pressure and heat transfer, ensuring perfect bonding and exceptional flatness for all 5-ply board types, even during speed changes or varying ambient conditions.
HIGHLIGHTS
Dynamic
Real-Time Adjustment
Flawless
Board Quality
FEATURE
Dynamic Adaptive Pressure System in Double Facer
Experience superior board quality with the Pro Line 180's dynamic adaptive pressure system in the Double Facer. This "Intelligent Edge" system uses real-time feedback to optimise pressure and heat transfer, ensuring perfect bonding and exceptional flatness for all 5-ply board types, even during speed changes or varying ambient conditions.
HIGHLIGHTS
Dynamic
Real-Time Adjustment
Flawless
Board Quality
FEATURE
Precision Thin Blade Slitter Scorer
Engineered for the Smart Line 150's increased throughput, the high-performance Thin Blade Slitter Scorer delivers exceptionally clean cuts and crisp scores with high accuracy. This minimises trim waste and ensures perfectly prepared board for efficient downstream converting, supporting overall operational excellence.
HIGHLIGHTS
Accurate
Slitting & Scoring
Reduced
Trim Waste
FEATURE
Precision Thin Blade Slitter Scorer
Engineered for the Smart Line 150's increased throughput, the high-performance Thin Blade Slitter Scorer delivers exceptionally clean cuts and crisp scores with high accuracy. This minimises trim waste and ensures perfectly prepared board for efficient downstream converting, supporting overall operational excellence.
HIGHLIGHTS
Accurate
Slitting & Scoring
Reduced
Trim Waste
FEATURE
Precision Thin Blade Slitter Scorer
Engineered for the Smart Line 150's increased throughput, the high-performance Thin Blade Slitter Scorer delivers exceptionally clean cuts and crisp scores with high accuracy. This minimises trim waste and ensures perfectly prepared board for efficient downstream converting, supporting overall operational excellence.
HIGHLIGHTS
Accurate
Slitting & Scoring
Reduced
Trim Waste
FEATURE
Precision Thin Blade Slitter Scorer
Engineered for the Smart Line 150's increased throughput, the high-performance Thin Blade Slitter Scorer delivers exceptionally clean cuts and crisp scores with high accuracy. This minimises trim waste and ensures perfectly prepared board for efficient downstream converting, supporting overall operational excellence.
HIGHLIGHTS
Accurate
Slitting & Scoring
Reduced
Trim Waste
FEATURE
Reliable NC Cut-Off (Heavy Duty Design)
The Pro Line 180 is equipped with a heavy-duty NC Cut-Off unit, designed for consistent and accurate sheet lengths even at higher operational speeds. Its robust construction ensures reliability and precision, vital for maintaining workflow and delivering quality board.
HIGHLIGHTS
Accurate
Sheet Lengths
Reliable
and Heavy Duty Design
FEATURE
Reliable NC Cut-Off (Heavy Duty Design)
The Pro Line 180 is equipped with a heavy-duty NC Cut-Off unit, designed for consistent and accurate sheet lengths even at higher operational speeds. Its robust construction ensures reliability and precision, vital for maintaining workflow and delivering quality board.
HIGHLIGHTS
Accurate
Sheet Lengths
Reliable
and Heavy Duty Design
FEATURE
Reliable NC Cut-Off (Heavy Duty Design)
The Pro Line 180 is equipped with a heavy-duty NC Cut-Off unit, designed for consistent and accurate sheet lengths even at higher operational speeds. Its robust construction ensures reliability and precision, vital for maintaining workflow and delivering quality board.
HIGHLIGHTS
Accurate
Sheet Lengths
Reliable
and Heavy Duty Design
FEATURE
Reliable NC Cut-Off (Heavy Duty Design)
The Pro Line 180 is equipped with a heavy-duty NC Cut-Off unit, designed for consistent and accurate sheet lengths even at higher operational speeds. Its robust construction ensures reliability and precision, vital for maintaining workflow and delivering quality board.
HIGHLIGHTS
Accurate
Sheet Lengths
Reliable
and Heavy Duty Design
FEATURE
High-Performance Stacker with Multiple Discharge Options
Manage high-volume output seamlessly with the Pro Line 180's high-performance stacking system. Offering options from advanced cross-stackers to gantry systems with multiple discharge points, it ensures efficient, organised 5-ply board accumulation, ready for integration with automated internal logistics.
HIGHLIGHTS
Max
Thoroughput Stacking
Logistics
Ready Output
FEATURE
High-Performance Stacker with Multiple Discharge Options
Manage high-volume output seamlessly with the Pro Line 180's high-performance stacking system. Offering options from advanced cross-stackers to gantry systems with multiple discharge points, it ensures efficient, organised 5-ply board accumulation, ready for integration with automated internal logistics.
HIGHLIGHTS
Max
Thoroughput Stacking
Logistics
Ready Output
FEATURE
High-Performance Stacker with Multiple Discharge Options
Manage high-volume output seamlessly with the Pro Line 180's high-performance stacking system. Offering options from advanced cross-stackers to gantry systems with multiple discharge points, it ensures efficient, organised 5-ply board accumulation, ready for integration with automated internal logistics.
HIGHLIGHTS
Max
Thoroughput Stacking
Logistics
Ready Output
FEATURE
High-Performance Stacker with Multiple Discharge Options
Manage high-volume output seamlessly with the Pro Line 180's high-performance stacking system. Offering options from advanced cross-stackers to gantry systems with multiple discharge points, it ensures efficient, organised 5-ply board accumulation, ready for integration with automated internal logistics.
HIGHLIGHTS
Max
Thoroughput Stacking
Logistics
Ready Output
why unipack
Total Value Proposition - Complete Ecosystem
global
Global Engineering. Local Support.
UniPack Corrugated is present across 04 different regions with a team of more than 350 members and 04 locations to provide a global service and solutions to its customers.
BENEFITS
Leadership in Innovation
Pioneering technologies that set new industry standards for performance, quality, and efficiency across all production parameters.
BENEFITS
Industry Expertise
Deep corrugated manufacturing knowledge combined with regional market understanding to create solutions perfectly tailored to your needs.
why unipack
Total Value Proposition - Complete Ecosystem
global
Global Engineering. Local Support.
UniPack Corrugated is present across 04 different regions with a team of more than 350 members and 04 locations to provide a global service and solutions to its customers.
BENEFITS
Leadership in Innovation
Pioneering technologies that set new industry standards for performance, quality, and efficiency across all production parameters.
BENEFITS
Industry Expertise
Deep corrugated manufacturing knowledge combined with regional market understanding to create solutions perfectly tailored to your needs.
why unipack
Total Value Proposition - Complete Ecosystem
global
Global Engineering. Local Support.
UniPack Corrugated is present across 04 different regions with a team of more than 350 members and 04 locations to provide a global service and solutions to its customers.
BENEFITS
Leadership in Innovation
Pioneering technologies that set new industry standards for performance, quality, and efficiency across all production parameters.
BENEFITS
Industry Expertise
Deep corrugated manufacturing knowledge combined with regional market understanding to create solutions perfectly tailored to your needs.
why unipack
Total Value Proposition - Complete Ecosystem
global
Global Engineering. Local Support.
UniPack Corrugated is present across 04 different regions with a team of more than 350 members and 04 locations to provide a global service and solutions to its customers.
BENEFITS
Leadership in Innovation
Pioneering technologies that set new industry standards for performance, quality, and efficiency across all production parameters.
BENEFITS
Industry Expertise
Deep corrugated manufacturing knowledge combined with regional market understanding to create solutions perfectly tailored to your needs.
UNI
SUPPORT
complete support
360º Support Ecosystem - Lifetime Partnership
BENEFITS
Rapid Response Technical Team.
Factory-trained engineers available within 72 hours across all regions, minimising downtime and keeping your plant running.
SPARES
Original Parts Guarantee
Complete Digital Inventory of Genuine components ensures consistent machine performance throughout lifecycle.
ONLINE SUPPORT
Remote Diagnostics Anytime. Anywhere.
Advanced Diagnostics ecosystem enabling team to support online for critical issues, with 24/7 technical support access.
training
Complete Operator / Team Training
Custom operator & maintenance training ensures your team maximises productivity & equipment lifespan from day one.
UNI
SUPPORT
complete support
360º Support Ecosystem - Lifetime Partnership
BENEFITS
Rapid Response Technical Team.
Factory-trained engineers available within 72 hours across all regions, minimising downtime and keeping your plant running.
SPARES
Original Parts Guarantee
Complete Digital Inventory of Genuine components ensures consistent machine performance throughout lifecycle.
ONLINE SUPPORT
Remote Diagnostics Anytime. Anywhere.
Advanced Diagnostics ecosystem enabling team to support online for critical issues, with 24/7 technical support access.
training
Complete Operator / Team Training
Custom operator & maintenance training ensures your team maximises productivity & equipment lifespan from day one.
UNI
SUPPORT
complete support
360º Support Ecosystem - Lifetime Partnership
BENEFITS
Rapid Response Technical Team.
Factory-trained engineers available within 72 hours across all regions, minimising downtime and keeping your plant running.
SPARES
Original Parts Guarantee
Complete Digital Inventory of Genuine components ensures consistent machine performance throughout lifecycle.
ONLINE SUPPORT
Remote Diagnostics Anytime. Anywhere.
Advanced Diagnostics ecosystem enabling team to support online for critical issues, with 24/7 technical support access.
training
Complete Operator / Team Training
Custom operator & maintenance training ensures your team maximises productivity & equipment lifespan from day one.
UNI
SUPPORT
complete support
360º Support Ecosystem - Lifetime Partnership
BENEFITS
Rapid Response Technical Team.
Factory-trained engineers available within 72 hours across all regions, minimising downtime and keeping your plant running.
SPARES
Original Parts Guarantee
Complete Digital Inventory of Genuine components ensures consistent machine performance throughout lifecycle.
ONLINE SUPPORT
Remote Diagnostics Anytime. Anywhere.
Advanced Diagnostics ecosystem enabling team to support online for critical issues, with 24/7 technical support access.
training
Complete Operator / Team Training
Custom operator & maintenance training ensures your team maximises productivity & equipment lifespan from day one.
customer stories
What Customers Say about UniPack.
Rajesh Mehta
Managing Director
Maharashtra, India
Increased production capacity by 40% within three months
The Smart 150+ corrugator from Unipack transformed our operation. Their engineers understood our specific challenges with quick changeovers between flute profiles. Since installation, we've increased production by 40% while reducing waste by 15%. Unipack's after-sales support has been exceptional - any technical issues are resolved within 24 hours. Their local service team provides regular maintenance that keeps our line running at peak efficiency.
Emmanuel Okonkwo
Owner
Lagos, Nigeria
Superior technology with reliable local support
After disappointments with two previous suppliers, Unipack's approach was refreshingly different. Their Smart 120 plant was specifically configured to handle our unstable power conditions with integrated backup systems. Despite our remote location, their service team has been responsive with both on-site visits and remote diagnostics. The machine's robustness in handling varying paper qualities has been crucial for our operation in challenging conditions.
Sandeep Kumar
Production Head
Gujarat, India
Transition from semi-automatic to fully automatic exceeded expectations
As a family business transitioning from semi-automatic equipment, we were concerned about the learning curve with a fully automatic plant. Unipack made this transition seamless with their comprehensive training program. The Pro 180 line delivers consistent quality even with recycled paper, which has helped us secure contracts with multinational clients. Their digital monitoring system allows us to track performance metrics we never had access to before.
Maria Gonzalez
Technical Director
Mexico City, Mexico
High-performance system that delivered on all technical promises
The Giant 220 line has exceeded our production targets by 15%. What impressed us most was Unipack's technical honesty - their specifications were not just marketing numbers but achievable in daily production. The integration with our existing downstream equipment was handled expertly, and their technicians worked alongside our team during commissioning to ensure knowledge transfer. Three years after installation, the system continues to perform at specified capacity with minimal downtime.
Amit Agarwal
CEO
Delhi, India
Exceptional ROI with comprehensive business support
Beyond delivering an excellent Pro 200 corrugator, Unipack provided valuable business consulting that improved our entire operation. Their team helped optimize our production planning, reducing idle time by 30%. The financing option they arranged made the investment feasible without straining our capital resources. Most importantly, the quality improvement has allowed us to enter premium packaging segments we couldn't serve before, increasing our profit margins significantly.
Luis Vargas
Operations Manager
Bogotá, Colombia
Custom solution that transformed our multi-product capability
Our unique challenge was producing both heavy-duty export packaging and high-graphic retail packaging on the same line. Unipack's engineers customized a Pro 200+ system with enhanced printing capabilities and quick-change components that allow us to switch between product types in under 30 minutes - a process that previously took 2 hours. Their project management was impeccable, from initial design consultations to installation. We've increased production versatility while maintaining consistent quality across all board grades.RetryClaude can make mistakes. Please double-check responses.
customer stories
What Customers Say about UniPack.
Rajesh Mehta
Managing Director
Maharashtra, India
Increased production capacity by 40% within three months
The Smart 150+ corrugator from Unipack transformed our operation. Their engineers understood our specific challenges with quick changeovers between flute profiles. Since installation, we've increased production by 40% while reducing waste by 15%. Unipack's after-sales support has been exceptional - any technical issues are resolved within 24 hours. Their local service team provides regular maintenance that keeps our line running at peak efficiency.
Emmanuel Okonkwo
Owner
Lagos, Nigeria
Superior technology with reliable local support
After disappointments with two previous suppliers, Unipack's approach was refreshingly different. Their Smart 120 plant was specifically configured to handle our unstable power conditions with integrated backup systems. Despite our remote location, their service team has been responsive with both on-site visits and remote diagnostics. The machine's robustness in handling varying paper qualities has been crucial for our operation in challenging conditions.
Sandeep Kumar
Production Head
Gujarat, India
Transition from semi-automatic to fully automatic exceeded expectations
As a family business transitioning from semi-automatic equipment, we were concerned about the learning curve with a fully automatic plant. Unipack made this transition seamless with their comprehensive training program. The Pro 180 line delivers consistent quality even with recycled paper, which has helped us secure contracts with multinational clients. Their digital monitoring system allows us to track performance metrics we never had access to before.
Maria Gonzalez
Technical Director
Mexico City, Mexico
High-performance system that delivered on all technical promises
The Giant 220 line has exceeded our production targets by 15%. What impressed us most was Unipack's technical honesty - their specifications were not just marketing numbers but achievable in daily production. The integration with our existing downstream equipment was handled expertly, and their technicians worked alongside our team during commissioning to ensure knowledge transfer. Three years after installation, the system continues to perform at specified capacity with minimal downtime.
Amit Agarwal
CEO
Delhi, India
Exceptional ROI with comprehensive business support
Beyond delivering an excellent Pro 200 corrugator, Unipack provided valuable business consulting that improved our entire operation. Their team helped optimize our production planning, reducing idle time by 30%. The financing option they arranged made the investment feasible without straining our capital resources. Most importantly, the quality improvement has allowed us to enter premium packaging segments we couldn't serve before, increasing our profit margins significantly.
Luis Vargas
Operations Manager
Bogotá, Colombia
Custom solution that transformed our multi-product capability
Our unique challenge was producing both heavy-duty export packaging and high-graphic retail packaging on the same line. Unipack's engineers customized a Pro 200+ system with enhanced printing capabilities and quick-change components that allow us to switch between product types in under 30 minutes - a process that previously took 2 hours. Their project management was impeccable, from initial design consultations to installation. We've increased production versatility while maintaining consistent quality across all board grades.RetryClaude can make mistakes. Please double-check responses.
customer stories
What Customers Say about UniPack.
Rajesh Mehta
Managing Director
Maharashtra, India
Increased production capacity by 40% within three months
The Smart 150+ corrugator from Unipack transformed our operation. Their engineers understood our specific challenges with quick changeovers between flute profiles. Since installation, we've increased production by 40% while reducing waste by 15%. Unipack's after-sales support has been exceptional - any technical issues are resolved within 24 hours. Their local service team provides regular maintenance that keeps our line running at peak efficiency.
Emmanuel Okonkwo
Owner
Lagos, Nigeria
Superior technology with reliable local support
After disappointments with two previous suppliers, Unipack's approach was refreshingly different. Their Smart 120 plant was specifically configured to handle our unstable power conditions with integrated backup systems. Despite our remote location, their service team has been responsive with both on-site visits and remote diagnostics. The machine's robustness in handling varying paper qualities has been crucial for our operation in challenging conditions.
Sandeep Kumar
Production Head
Gujarat, India
Transition from semi-automatic to fully automatic exceeded expectations
As a family business transitioning from semi-automatic equipment, we were concerned about the learning curve with a fully automatic plant. Unipack made this transition seamless with their comprehensive training program. The Pro 180 line delivers consistent quality even with recycled paper, which has helped us secure contracts with multinational clients. Their digital monitoring system allows us to track performance metrics we never had access to before.
Maria Gonzalez
Technical Director
Mexico City, Mexico
High-performance system that delivered on all technical promises
The Giant 220 line has exceeded our production targets by 15%. What impressed us most was Unipack's technical honesty - their specifications were not just marketing numbers but achievable in daily production. The integration with our existing downstream equipment was handled expertly, and their technicians worked alongside our team during commissioning to ensure knowledge transfer. Three years after installation, the system continues to perform at specified capacity with minimal downtime.
Amit Agarwal
CEO
Delhi, India
Exceptional ROI with comprehensive business support
Beyond delivering an excellent Pro 200 corrugator, Unipack provided valuable business consulting that improved our entire operation. Their team helped optimize our production planning, reducing idle time by 30%. The financing option they arranged made the investment feasible without straining our capital resources. Most importantly, the quality improvement has allowed us to enter premium packaging segments we couldn't serve before, increasing our profit margins significantly.
Luis Vargas
Operations Manager
Bogotá, Colombia
Custom solution that transformed our multi-product capability
Our unique challenge was producing both heavy-duty export packaging and high-graphic retail packaging on the same line. Unipack's engineers customized a Pro 200+ system with enhanced printing capabilities and quick-change components that allow us to switch between product types in under 30 minutes - a process that previously took 2 hours. Their project management was impeccable, from initial design consultations to installation. We've increased production versatility while maintaining consistent quality across all board grades.RetryClaude can make mistakes. Please double-check responses.
customer stories
What Customers Say about UniPack.
Rajesh Mehta
Managing Director
Maharashtra, India
Increased production capacity by 40% within three months
The Smart 150+ corrugator from Unipack transformed our operation. Their engineers understood our specific challenges with quick changeovers between flute profiles. Since installation, we've increased production by 40% while reducing waste by 15%. Unipack's after-sales support has been exceptional - any technical issues are resolved within 24 hours. Their local service team provides regular maintenance that keeps our line running at peak efficiency.
Emmanuel Okonkwo
Owner
Lagos, Nigeria
Superior technology with reliable local support
After disappointments with two previous suppliers, Unipack's approach was refreshingly different. Their Smart 120 plant was specifically configured to handle our unstable power conditions with integrated backup systems. Despite our remote location, their service team has been responsive with both on-site visits and remote diagnostics. The machine's robustness in handling varying paper qualities has been crucial for our operation in challenging conditions.
Sandeep Kumar
Production Head
Gujarat, India
Transition from semi-automatic to fully automatic exceeded expectations
As a family business transitioning from semi-automatic equipment, we were concerned about the learning curve with a fully automatic plant. Unipack made this transition seamless with their comprehensive training program. The Pro 180 line delivers consistent quality even with recycled paper, which has helped us secure contracts with multinational clients. Their digital monitoring system allows us to track performance metrics we never had access to before.
Maria Gonzalez
Technical Director
Mexico City, Mexico
High-performance system that delivered on all technical promises
The Giant 220 line has exceeded our production targets by 15%. What impressed us most was Unipack's technical honesty - their specifications were not just marketing numbers but achievable in daily production. The integration with our existing downstream equipment was handled expertly, and their technicians worked alongside our team during commissioning to ensure knowledge transfer. Three years after installation, the system continues to perform at specified capacity with minimal downtime.
Amit Agarwal
CEO
Delhi, India
Exceptional ROI with comprehensive business support
Beyond delivering an excellent Pro 200 corrugator, Unipack provided valuable business consulting that improved our entire operation. Their team helped optimize our production planning, reducing idle time by 30%. The financing option they arranged made the investment feasible without straining our capital resources. Most importantly, the quality improvement has allowed us to enter premium packaging segments we couldn't serve before, increasing our profit margins significantly.
Luis Vargas
Operations Manager
Bogotá, Colombia
Custom solution that transformed our multi-product capability
Our unique challenge was producing both heavy-duty export packaging and high-graphic retail packaging on the same line. Unipack's engineers customized a Pro 200+ system with enhanced printing capabilities and quick-change components that allow us to switch between product types in under 30 minutes - a process that previously took 2 hours. Their project management was impeccable, from initial design consultations to installation. We've increased production versatility while maintaining consistent quality across all board grades.RetryClaude can make mistakes. Please double-check responses.
faq
Frequently Asked Questions
What makes the Pro Line 180 different from the Smart Line series?
How does the "Intelligent Edge" benefit my operation on the Pro Line 180?
Is the Pro Line 180 suitable for producing high-graphic or specialty board?
What level of automation is included in the Pro Line 180?
Can the Pro Line 180 be integrated with our existing plant MES/ERP systems?
Does Unipack offer financing options for machinery purchases?
Have further Questions?
faq
Frequently Asked Questions
What makes the Pro Line 180 different from the Smart Line series?
How does the "Intelligent Edge" benefit my operation on the Pro Line 180?
Is the Pro Line 180 suitable for producing high-graphic or specialty board?
What level of automation is included in the Pro Line 180?
Can the Pro Line 180 be integrated with our existing plant MES/ERP systems?
Does Unipack offer financing options for machinery purchases?
Have further Questions?
faq
Frequently Asked Questions
What makes the Pro Line 180 different from the Smart Line series?
How does the "Intelligent Edge" benefit my operation on the Pro Line 180?
Is the Pro Line 180 suitable for producing high-graphic or specialty board?
What level of automation is included in the Pro Line 180?
Can the Pro Line 180 be integrated with our existing plant MES/ERP systems?
Does Unipack offer financing options for machinery purchases?
Have further Questions?
faq
Frequently Asked Questions
What makes the Pro Line 180 different from the Smart Line series?
How does the "Intelligent Edge" benefit my operation on the Pro Line 180?
Is the Pro Line 180 suitable for producing high-graphic or specialty board?
What level of automation is included in the Pro Line 180?
Can the Pro Line 180 be integrated with our existing plant MES/ERP systems?
Does Unipack offer financing options for machinery purchases?
Have further Questions?
UNIPACK
UniPack Corrugated (I) Pvt. Ltd.
Plot No. L-148 & 149, Verna Industrial Estate,
Verna - Goa. 403722
hello@unipack.asia
© 2025 - Unipack Corrugated - All Rights Reserved
Support
UNIPACK
UniPack Corrugated (I) Pvt. Ltd.
Plot No. L-148 & 149, Verna Industrial Estate,
Verna - Goa. 403722
hello@unipack.asia
© 2025 - Unipack Corrugated - All Rights Reserved
Support
UNIPACK
UniPack Corrugated (I) Pvt. Ltd.
Plot No. L-148 & 149, Verna Industrial Estate,
Verna - Goa. 403722
hello@unipack.asia
© 2025 - Unipack Corrugated - All Rights Reserved
Support
UNIPACK
UniPack Corrugated (I) Pvt. Ltd.
Plot No. L-148 & 149, Verna Industrial Estate,
Verna - Goa. 403722
hello@unipack.asia
© 2025 - Unipack Corrugated - All Rights Reserved
Support
